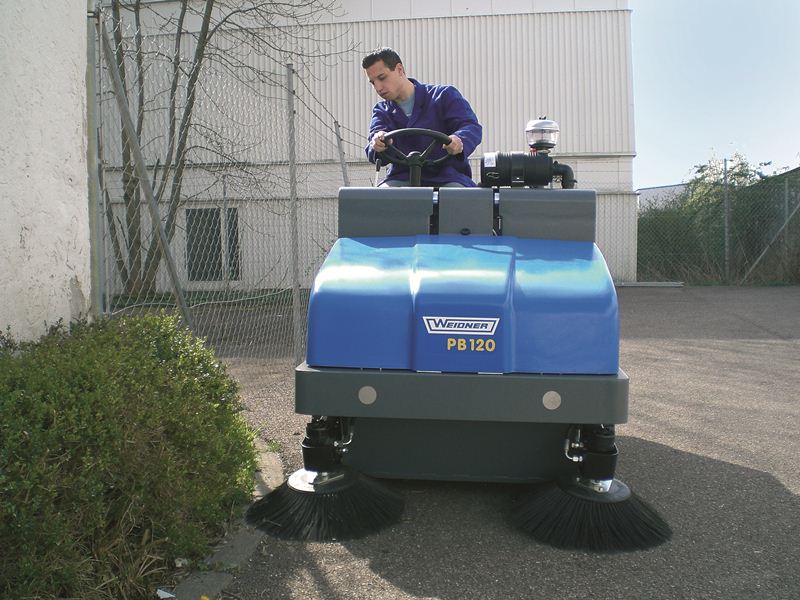

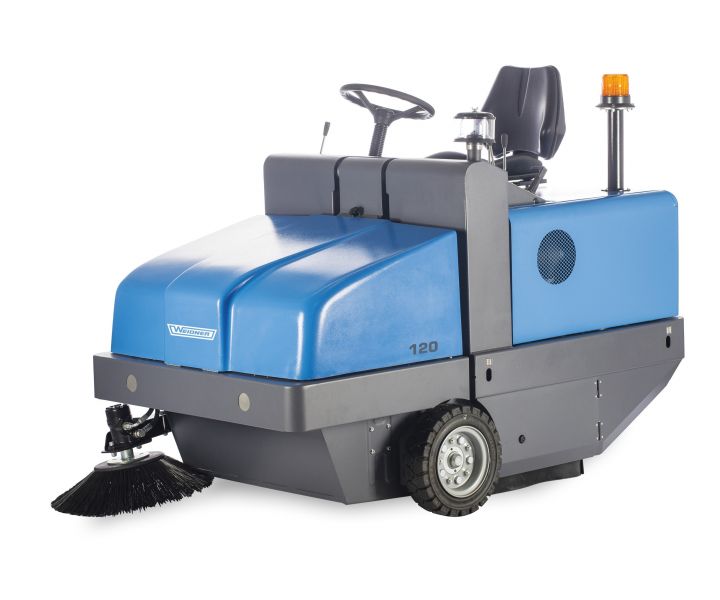

The KS100120 is a robust, full hydraulic ride on on sweeping vac with high emptying for heaviest, professional application.

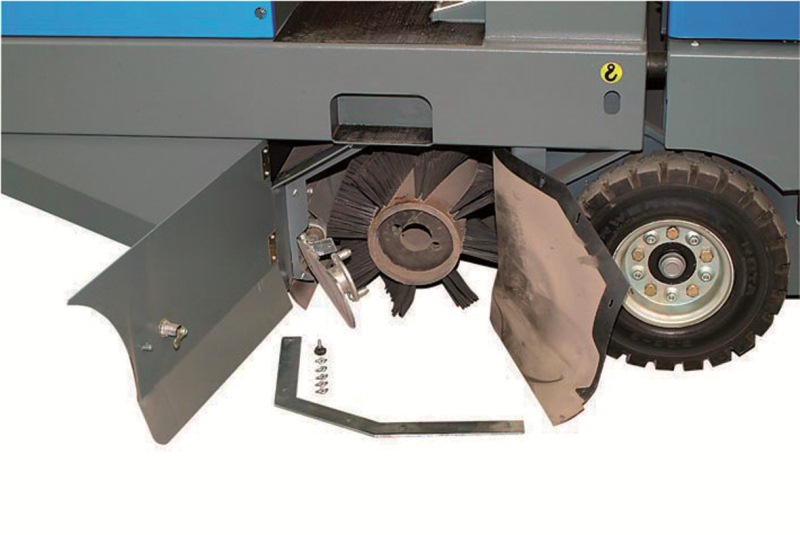

The machine operates according to the dust pan principle, i.e. the dirt will be flung directly in the front container. The dust pan principle is especially suitable for big and heavy dirts, as well as for high quantities on fine dust. The hydraulic driven main roller with its selfregulated height adjustment warrants also an optimum cleaning result on changeable floor conditions. The machine is serially equipped with two hydraulic side brushes.

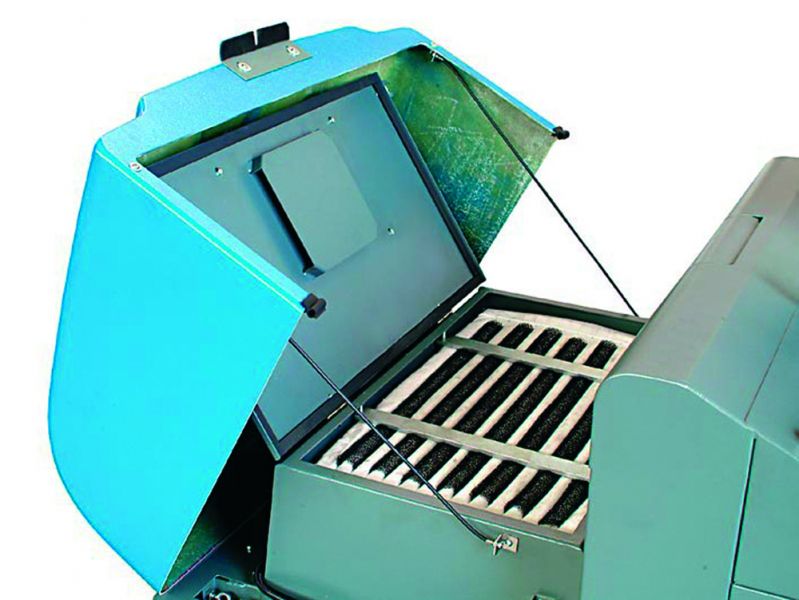

With one of the biggest pocket filter (6,5 m²) in this category, the Star 1-120 can sweep a lot of  fine dust.

The clear assembly of the control lever and switch enables an optimum, delicate operation of the machine. This warrants safety conditions for the operator.





USER FRIENDLY

  • Clear and easy
  • Simple drainage of the dirt container

MAINTENANCE FRIENDLY

  • Easy access to all components
  • Large washable polyester pocket filter
  • Full hydraulic operated

ROBUST

  • Machine frame out of steel

HIGH-PERFORMANCE

  • Lombardini 2 cyl diesel engine water cooled
  • Infinitely variable traction drive
  • Optional 2. side brush

EFFICIENT

  • Large dimensioned dirt container
  • Main brush with direct sweeping principal
  • Lighting system for public traffic on demand available



Optional design:

  • 1,55 m working width

  • 1,70 m working width

modelSTAR 1 - 120 DSTAR 1 - 120 E
order-no.KS100120DKS100120E
working with / without side brush [mm]850 / 1350850 / 1350
working capacity [m²/h]1300011000
dirt container [l]205205
drive19,7 PS Lombardini Diesel36V
filtering area [m²]6,56,5
filter shakerelectricelectric
filter materialpolyester pocket filterpolyester pocket filter
climbing ability [%]1815
measurement (lxwxh) [mm]1940x1180x14301940x1180x1430
weight without battery [kg]-690
weight [kg]730-
apply recommendation

products for business and industrial applications

recommended for semi proffesional use



examples
